And the other piece of knowledge that we need is that the dimension of the matrix is going to be written as the number of row times the number of columns in the matrix. So, concretely, this example on the left, this has 1, 2, 3, 4 rows and has 2 columns, 1분 14초부터 동영상을 재생하고 스크립트 따르기1:14 and so this example on the left is a 4 by 2 matrix - number of rows by number of columns. So, four rows, two columns. This one on the right, this matrix has two rows. That's the first row, that's the second row, and it has three columns. 1분 35초부터 동영상을 재생하고 스크립트 따르기1:35 That's the first column, that's the second column, that's the third column So, this second matrix we say it is a 2 by 3 matrix.right, because that's 3 2 so that's equal to 1 4 3 7. And finally, 8 4 1 is going to refer to this one right, fourth row, first column is equal to 1 4 7 and if, hopefully you won't, but if you were to write and say well this A 4 3, well, that refers to the fourth row, and the third column that, you know, this matrix has no third column so this is undefined,you know, or you can think of this as an error. There's no such element as 8 4 3, so, you know, you shouldn't be referring to 8 4 3. So, the matrix gets you a way of letting you quickly organize, index and access lots of data. In case I seem to be tossing up a lot of concepts, a lot of new notations very rapidly, you don't need to memorize all of this, but on the course website where we have posted the lecture notes, we also have all of these definitions written down. A vector is a matrix that has only 1 column so you have an N x 1 matrix, then that's a remember, right? N is the number of rows, and 1 here is the number of columns, so, so matrix with just one column is what we call a vector. So here's an example of a vector, with I guess I have N equals four elements here.you should assume we are using one index vectors. In fact, throughout the rest of these videos on linear algebra review, I will be using one index vectors. vectors as well. Finally, by convention, usually when writing matrices and vectors, most people will use upper case to refer to matrices. So we're going to use capital letters like A, B, C, you know, X, to refer to matrices, 8분 16초부터 동영상을 재생하고 스크립트 따르기8:16and usually we'll use lowercase, like a, b, x, y, 8분 21초부터 동영상을 재생하고 스크립트 따르기8:21to refer to either numbers, or just raw numbers or scalars or to vectors. This isn't always true but this is the more common notation where we use lower case "Y" for referring to vector and we usually use upper case to refer to a matrix.
Matrices and Vectors
Matrices are 2-dimensional arrays:
⎡⎣⎢⎢⎢adgjbehkcfil⎤⎦⎥⎥⎥
[abcdefghijkl]
The above matrix has four rows and three columns, so it is a 4 x 3 matrix.
A vector is a matrix with one column and many rows:
⎡⎣⎢⎢wxyz⎤⎦⎥⎥
[wxyz]
So vectors are a subset of matrices. The above vector is a 4 x 1 matrix.

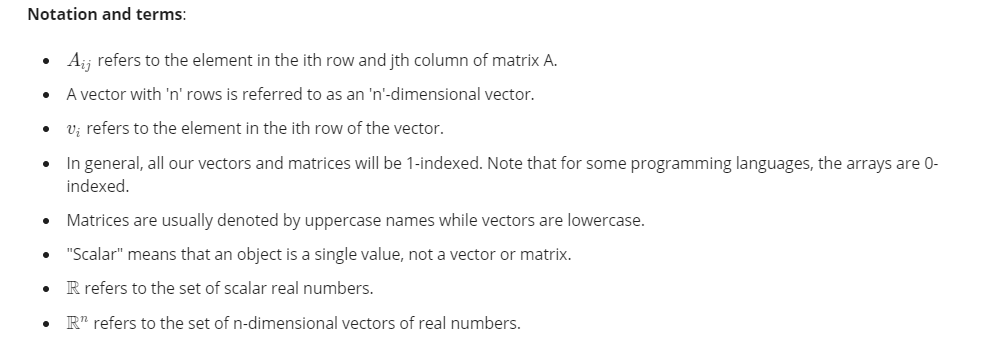

Notation and terms:
A_{ij}Aijrefers to the element in the ith row and jth column of matrix A.
A vector with 'n' rows is referred to as an 'n'-dimensional vector
v_ivirefers to the element in the ith row of the vector.
In general, all our vectors and matrices will be 1-indexed. Note that for some programming languages, the arrays are 0-indexed.
Matrices are usually denoted by uppercase names while vectors are lowercase.
"Scalar" means that an object is a single value, not a vector or matrix.
\mathbb{R}Rrefers to the set of scalar real numbers
\mathbb{R^n}Rnrefers to the set of n-dimensional vectors of real numbers
Addition and Scalar Multiplication
Addition and subtraction areelement-wise, so you simply add or subtract each corresponding element:
In scalar multiplication, we simply multiply every element by the scalar value:To add or subtract two matrices, their dimensions must bethe same.
[acbd]
* x =
[a∗xc∗xb∗xd∗x]
[abcd]∗x=[a∗xb∗xc∗xd∗x]
It turns out this "n" here has to match this "n" here. In other words, the number of columns in this matrix, so it's the number of n columns. The number of columns here has to match the number of rows here. It has to match the dimension of this vector. And the result of this product is going to be an n-dimensional vector y. And if you just do this then this variable prediction - sorry for my bad handwriting - then just implement this one line of code assuming you have an appropriate library to do matrix vector multiplication. If you just do this, then prediction becomes this 4 by 1 dimensional vector, on the right, that just gives you all the predicted prices. And your alternative to doing this as a matrix vector multiplication would be to write eomething like , you know, for I equals 1 to 4, right? And you have say a thousand houses it would be for I equals 1 to a thousand or whatever. It turns out, that, by writing code in this style on the left, it allows you to not only simplify the code, because, now, you're just writing one line of code rather than the form of a bunch of things inside. But, for subtle reasons, that we will see later, it turns out to be much more computationally efficient to make predictions on all of the prices of all of your houses doing it the way on the left than the way on the right than if you were to write your own formula.
Matrix-Vector Multiplication
We map the column of the vector onto each row of the matrix, multiplying each element and summing the result.
⎡⎣acebdf⎤⎦
*
[xy]
=
⎡⎣⎢a∗x+b∗yc∗x+d∗ye∗x+f∗y⎤⎦⎥
[abcdef]∗[xy]=[a∗x+b∗yc∗x+d∗ye∗x+f∗y]
The result is avector. The vector must be thesecondterm of the multiplication. The number ofcolumnsof the matrix must equal the number ofrowsof the vector.
Anm x n matrixmultiplied by ann x 1 vectorresults in anm x 1 vector.
Matrix-Matrix Multiplication
We multiply two matrices by breaking it into several vector multiplications and concatenating the result
Anm x n matrixmultiplied by ann x o matrixresults in anm x omatrix. In the above example, a 3 x 2 matrix times a 2 x 2 matrix resulted in a 3 x 2 matrix.
To multiply two matrices, the number ofcolumnsof the first matrix must equal the number ofrowsof the second matrix.
So I'm gonna take this two matrices and just reverse them. It turns out if you multiply these two matrices, you get the second answer on the right. And well clearly, right, these two matrices are not equal to each other.So it doesn't matter whether I multiply 5 x 2 first or whether I multiply 3 x 5 first, because sort of, well, 3 x (5 x 2) = (3 x 5) x 2. And this is called the associative property of real number multiplication. It turns out that matrix multiplication is associative.Finally, I want to tell you about the Identity Matrix, which is a special matrix. So let's again make the analogy to what we know of real numbers. When dealing with real numbers or scalar numbers, the number 1, you can think of it as the identity of multiplication. And what I mean by that is that for any number z, 1 x z = z x 1. And that's just equal to the number z for any real number z. Finally, I just wanna point out that earlier I said that AB is not, in general, equal to BA. Right? For most matrices A and B, this is not true. But when B is the identity matrix, this does hold true, that A times the identity matrix does indeed equal to identity times A is just that you know this is not true for other matrices B in general.
Matrix Multiplication Properties
Not commutative. A∗B≠B∗A
Associative. (A∗B)∗C=A∗(B∗C)
Theidentity matrix, when multiplied by any matrix of the same dimensions, results in the original matrix. It's just like multiplying numbers by 1. The identity matrix simply has 1's on the diagonal (upper left to lower right diagonal) and 0's elsewhere.
⎡⎣100010001⎤⎦
[100010001]
When multiplying the identity matrix after some matrix (A∗I), the square identity matrix should match the other matrix'scolumns. When multiplying the identity matrix before some other matrix (I∗A), the square identity matrix should match the other matrix'srows.
So how did I find this inverse or how did I come up with this inverse over here? It turns out that sometimes you can compute inverses by hand but almost no one does that these days. And it turns out there is very good numerical software for taking a matrix and computing its inverse. So again, this is one of those things where there are lots of open source libraries that you can link to from any of the popular programming languages to compute inverses of matrices. Let me show you a quick example. How I actually computed this inverse, and what I did was I used software called Optive. But the intuition if you want is that you can think of matrices as not have an inverse that is somehow too close to zero in some sense. So, just to wrap up the terminology, matrix that don't have an inverse Sometimes called a singular matrix or degenerate matrix and so this matrix over here is an example zero zero zero matrix. is an example of a matrix that is singular, or a matrix that is degenerate. Finally, the last special matrix operation I want to tell you about is to do matrix transpose. So suppose I have matrix A, if I compute the transpose of A, that's what I get here on the right. This is a transpose which is written and A superscript T, and the way you compute the transpose of a matrix is as follows. To get a transpose I am going to first take the first row of A one to zero. That becomes this first column of this transpose.
Inverse and Transpose
Theinverseof a matrix A is denoted A−1. Multiplying by the inverse results in the identity matrix.
A non square matrix does not have an inverse matrix. We can compute inverses of matrices in octave with the pinv(A) function [1] and in matlab with the inv(A) function. Matrices that don't have an inverse aresingularordegenerate.
Thetranspositionof a matrix is like rotating the matrix 90°in clockwise direction and then reversing it. We can compute transposition of matrices in matlab with the transpose(A) function or A':
